RPM: 3,400
Shaft size: 3/4”
Max GPM: 2.5
Max PSI: 3,000
Inlet Thread: 3/4” GHA
Discharge Thread: 22mm x 14M

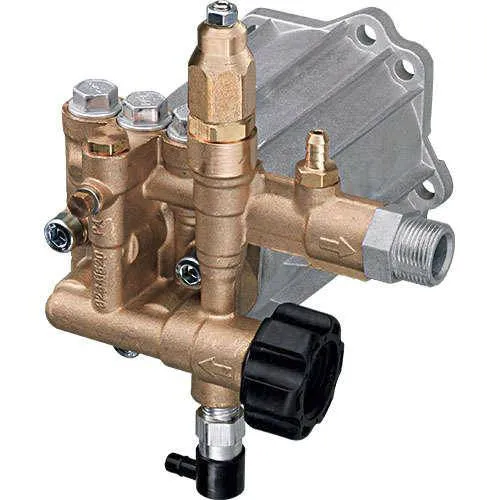

Annovi Reverberi RMV25G30D horizontal plunger pump. 2.5 GPM at 3,000 PSI, spins at 3,400 RPM in a direct drive system coupled with a gasoline engine. The matching flange provides convenient connection to most 3/4” shaft 4 - 7 HP engines. The hollow shafted pump includes a built-in pressure control valve, and chemical injection system. Comes with easy connect.

• 3-piston alternating volumetric pumps for use oncleaning units
• Can be directly coupled to various types of motors
• Pump body in die-cast aluminium alloy
• Pistons driven by swash plate mechanism
• Two bearing systems, to support the pump shaft andpistons
• Pistons in hardened and tempered steel
• Pump head in pressed brass
• Double gasket sealing system
• Intake valves fitted above the pistons for greater efficiency
• Integral regulating valve
• Optional detergent suction system
• Different delivery connections available
